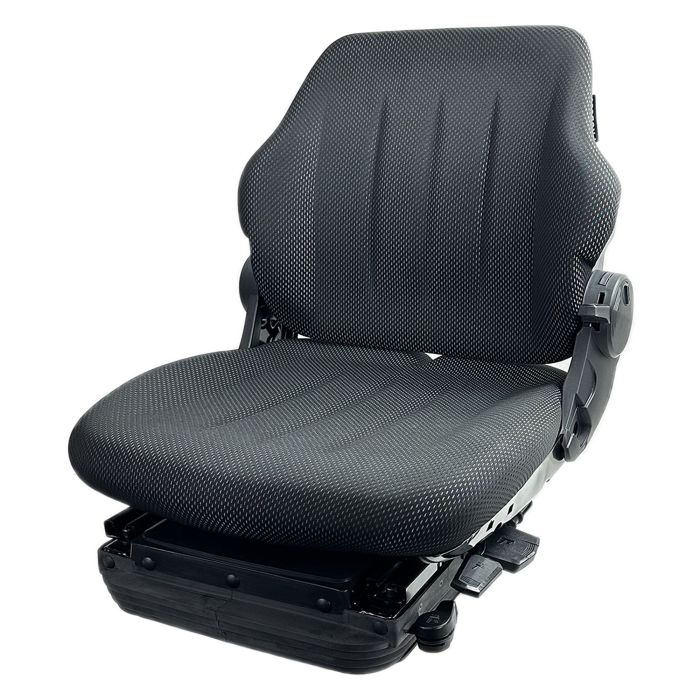

Air Suspension Black Cloth Seat for Caterpillar
Part Number
E-PB01-CAT
$899.00
In stock
- Package Quantity: 1
- NOTE: ProBoss Brand Replacement for Models Factory Equipped With A Grammer Air Suspension Seat. If Using for Models That Did NOT Come Factory Equipped With A Grammer Seat Some Modifications May Be Needed for Proper Fit.
- 11 Mounting Holes Each Side / 10-1/4" CTC Spacing Side To Side
- Spacing of Mounting Holes Front to Back (CTC From Front Of Seat) : 1", 1-1/2", 5-1/4", 6-1/2", 8-1/2", 9-1/2", 10-1/4", 11", 12" & 12-3/4"
- Air Suspension With Self Contained 12V Compressor
- Fore/Aft Isolator
- Continuous Height Adjustment
- Longitudinal Adjustment
- Backrest Tilt Adjustment
- Mechanical Lumbar Support
- Seat Cushion Width: 18.900" (480mm)
- Overall Seat Width: 20.250" (514mm)
- Durable Black Cloth Material
- Compatible With Caterpillar Dozer(s): 814F
- Compatible With Caterpillar Articulated Dump Truck(s): 730, 735, 740, D350, D400
- Compatible With Caterpillar Stabilizer(s): RM500
- Compatible With Caterpillar Telehandler(s): TH406, TH407, TH514
- Compatible With Caterpillar Wheel Loader(s): 906H, 907H, 908H, 914G, 924H, 924HZ, 928F, 928HZ, 930H, 938F, 938G, 938H, 950F, 950H, 950K, 962H, 962K, 966H, 966K, 972H, 972K, 980H, 980K, 988H, 990H, 992K, 993K, 994F, IT14G, IT38H, IT62H
- Compatible With Caterpillar Excavator(s): 312D, 312DL, 315L, 320BL, 325DL, 330BL, 345CL
- Compatible With Caterpillar Crawler Loader(s): 953D
- Compatible With Caterpillar Crawler Dozer(s): D10N, D10R, D10T, D11N, D11R, D11T, D3G, D3K, D4G, D5G, D5M, D5N, D6M, D6N, D6R, D6T, D7H, D7R, D8N, D8R, D8T, D9N, D9R, D9T
- Compatible With Caterpillar Motor Grader(s): 120M, 12M, 140M, 140M2, 14M, 160M, 160M2, 160M2AWD, 16M, 24M
- Compatible With Caterpillar Compactor(s): 815F, 816F, 825H, 826H, 836H, CP-433E, CS44
| Part Number | E-PB01-CAT |
|---|---|
| Model | 120M, 12M, 140M, 140M2, 14M, 160M, 160M2, 160M2AWD, 16M, 24M, 312D, 312DL, 315L, 320BL, 325DL, 330BL, 345CL, 730, 735, 740, 814F, 815F, 816F, 825H, 826H, 836H, 906H, 907H, 908H, 914G, 924H, 924HZ, 928F, 928HZ, 930H, 938F, 938G, 938H, 950F, 950H, 950K, 953D, 962H, 962K, 966H, 966K, 972H, 972K, 980H, 980K, 988H, 990H, 992K, 993K, 994F, CP-433E, CS44, D10N, D10R, D10T, D11N, D11R, D11T, D350, D3G, D3K, D400, D4G, D5G, D5M, D5N, D6M, D6N, D6R, D6T, D7H, D7R, D8N, D8R, D8T, D9N, D9R, D9T, IT14G, IT38H, IT62H, RM500, TH406, TH407, TH514 |
